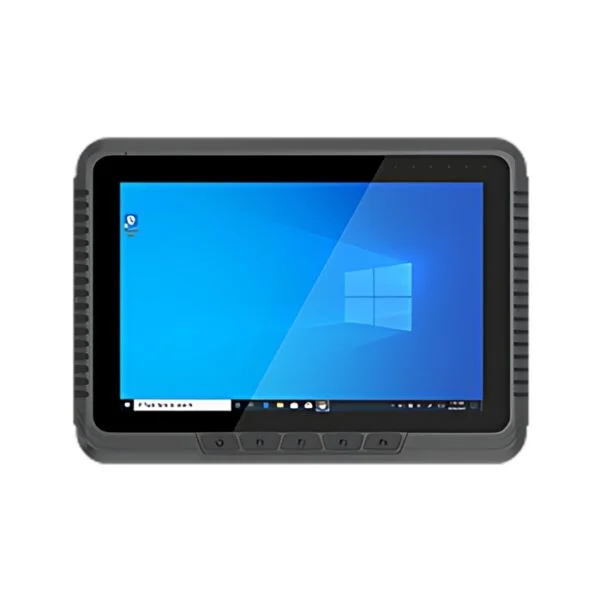

V80J Vehicle PC

Customer Review 0
5/5

V80J is a 8-inch vehicle pc, which is specially designed for in-vehicle applications. Equipped with Intel® 11th Gen Celeron® N5100 processor, it is more powerful, and its integrated Wi-Fi-5, 4G LTE and GPS functions support available vehicle mushroom antennas, the coverage area is larger and the signal reception is better. Moreover, it has passed the dustproof, waterproof, anti-vibration and wide temperature tests, and with the M12 aviation plugs, wide voltage module, VESA and RAM mounting methods, etc., it can keep stable at all times and can meet all vehicle types, like forklifts, cranes, trucks.

Share it :
International Shipment

Your orders are shipped seamlessly between countries

30 Days Warranty

You have the right to return your orders within 30 days.

Secure Payment

Your payments are secure with our private security network.

Description

V80J is a 8-inch vehicle pc, which is specially designed for in-vehicle applications. Equipped with Intel® 11th Gen Celeron® N5100 processor, it is more powerful, and its integrated Wi-Fi-5, 4G LTE and GPS functions support available vehicle mushroom antennas, the coverage area is larger and the signal reception is better. Moreover, it has passed the dustproof, waterproof, anti-vibration and wide temperature tests, and with the M12 aviation plugs, wide voltage module, VESA and RAM mounting methods, etc., it can keep stable at all times and can meet all vehicle types, like forklifts, cranes, trucks.

SPECIFICATIONS

Dimensions : 218.1×154.5×23.0mm

Weight : 620g
Product Color : Black
Display : Size: 8 inch 16:10, Resolution: 800*1280 IPS, Brightness: 1000cd/㎡
Touch Panel : 5-point tempered glass capacitive screen G+G, hardness 7H
I/O Interface : SIM card slot (optional) Nano-SIM *1, Standard USB-A port / Data transmission, DC input (Input: 11~24V), PORT1 (M12-12) (optional), 1000M network interface, PORT2 (M12-12) (optional), RS232 *1+RS232/RS485 *1, PORT3 (M12-12) (optional), USB 2.0 *2+USB 2.0 (Default) / CAN*1
Processor : Intel® Celeron® Processor N5100
Operating System : Windows 10
Memory+Storage : RAM: 8GB (LPDDR3), ROM: 128GB (EMMC)
Battery (optional) : Built in polymer lithium ion battery, 1000mAh/7.4V
RTC Battery : Built in RTC battery
Power adapter : 12V4A DC φ5.5 power adapter
WiFi : 802.11 (a/b/g/n/ac), 2.4G+5.8G dual frequency, Standard WiFi rod antenna
WAN (optional) : 4G, Optional 4G rod antenna
Bluetooth : Bluetooth 5.0
GNSS : Built in, Ublox 7 supports GPS, GLONASS
NFC (optional) : Support
IP Ratings : IP65
Temperature : Working temperature: -20 °C to 60 °C, Storage temperature: -30 °C to 70 °C
ESD Protection : ±15kV air discharge, ±8kV contact discharge
Standard : WIFI rod antenna, GPS rod antenna, Power adapter cable (M12-8 power port to φ5.5 power port, suitable for cigarette lighter)
Optional : Nano-SIM *1, USB 3.0 *1, USB A port, HOST data transmission, DC input (Input: 11~24V), PORT1 (M12-12) (optional), 1000M network interface, PORT2 (M12-12) (optional), RS232 *1+RS232/RS485 *1, PORT3 (M12-12) (optional), USB 2.0 *1+USB 2.0 (Default) / CAN*1+CVBS*1
