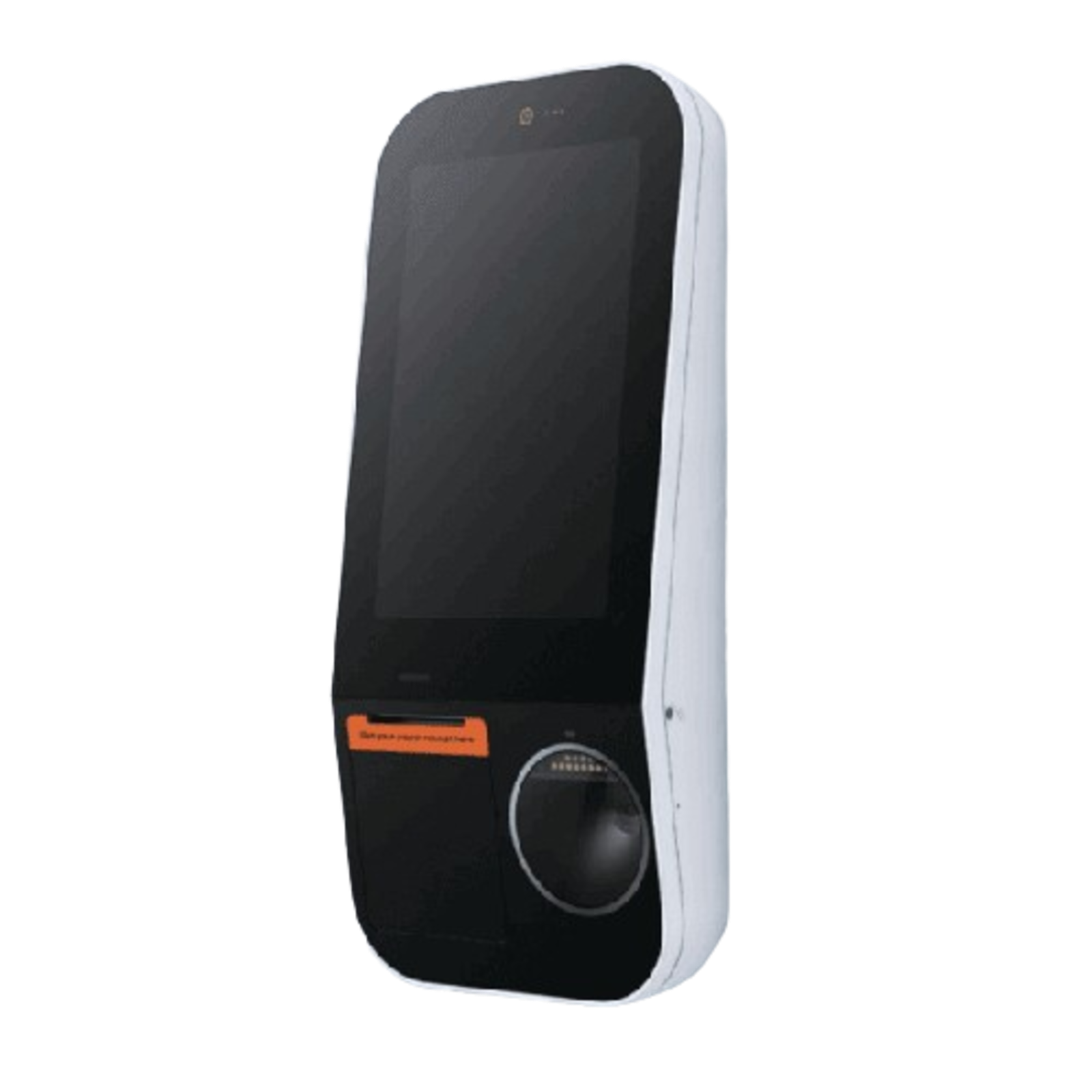

The ENSMBL SCK 102 is a compact, high-performance Android-based smart kiosk, designed for seamless self-service and business automation. Equipped with a 10.1-inch HD touchscreen, high-speed printer, and barcode scanner, it supports various industries, including retail, hospitality, and logistics. With multiple connectivity options, easy installation, and expandable ports, the SCK 102 ensures efficiency and convenience for any business environment.

Warranty: 1 Year

SPECIFICATIONS

Operating System & Processor

• OS: Android 13
• CPU: Octa-core 64-bit Cortex A53, 2.0 GHz

Memory & Storage

• RAM/Storage: 2GB LPDDR4x + 32GB Flash (Standard)
• Optional Configurations: 3GB + 32GB / 4GB + 64GB

Display

• Size: 10.1-inch
• Resolution: 800 × 1280 HD TFT capacitive touchscreen

Printer

• Print Speed: 100mm/s
• Paper Roll: 58mm × 60mm

Camera & Scanning

• Front Camera: 5 MP Auto Focus
• Barcode Scanner: Professional 1D & 2D high-performance scanner

Indicators

• Printer Indicator LED: ×1
• Scan Indicator LED: ×1

Connectivity

• Mobile Network: 4G LTE / 3G WCDMA / 2G GPRS/GSM
• Ethernet: 100M
• Wi-Fi: 2.4GHz / 5GHz
• Bluetooth: 5.0 (BLE)
• NFC: Contactless card reader (Optional)

Ports & Slots

• USB Ports: 2 × USB 2.0 Type-A, 1 × USB 2.0 Type-C
• Other Ports: 1 × RJ45, 1 × DC Jack, 1 × Audio Jack
• Card Slots: 1 × TF Card, 1 × Nano SIM (eSIM Optional)

Audio & Positioning

• Speaker: ×1
• Microphone: ×1
• Positioning: GPS + GLONASS + BEIDOU

Power & Environmental Conditions

• Power Adapter Output: 12V / 3A
• Operating Temperature: -10°C to +55°C
• Storage Temperature: -20°C to +70°C
• Humidity: 5% to 95% (non-condensing)

Physical Specifications

• Dimensions (H × W × D): 429 × 190 × 80.4 mm
• Weight (Net): 1.52 kg

Certifications

• Google GMS
• RoHS
• CE
• Aviation Certification
• Anatel

What’s Included

• ENSMBL SCK 102 Smart Mini Kiosk
• Power Adapter
• User Manual
