Description

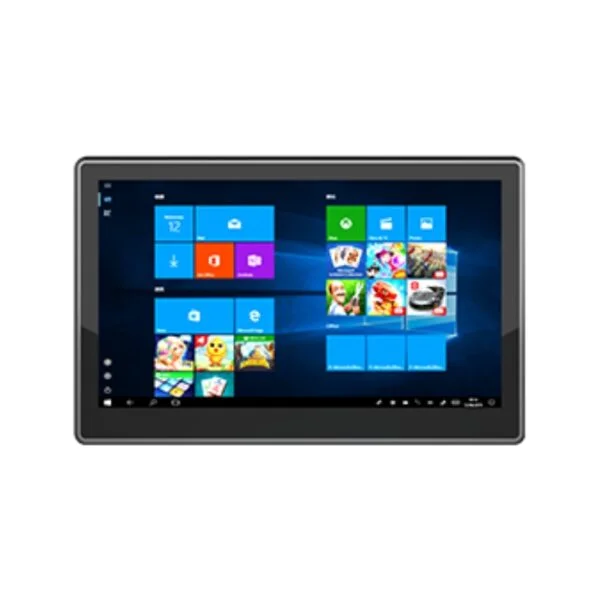

Featuring a 15.6-inch expansive display with up to 170° viewing angles, PT15’s industrial-grade screen boasts a resolution of 1920×1080, supporting 10-point capacitive touch.Equipped with various built-in input display interfaces and featuring a rear plug-in design, PT15 supports HDMI, VGA (Analog RGB), and DVI interface types to meet external display needs.IP65-rated flat panel and fin-type backshell, PT15 is built to withstand dust, oil, electromagnetic interference, and wide temperature ranges.
SPECIFICATIONS
Dimensions : 388.63 x 248.43 x 54.95 mm
Weight : TBD
Product Color : Black
Display : Type: LCD, Size: 15.6-inch 16 :9, Resolution: 1920×1080, Brightness: 220cd/㎡
Touch Panel : 10-point capacitive touch (Optional without touch control)
I/O Ports : DC 12V *1, HDMI *1, VGA *1, DVI *1, ∮3.5mm Standard AUDIO Port *1, ∮3.5mm Standard Earphone Jack *1, USB TYPE-B (TP Port)
CPU : Realtek RTD25XX
Power Adaptor : Power Adaptor
Rugged Features : IP65-rating waterproof of front panel
Certifications : Product certifications: CCC CE FCC
Temperature : Working temperature: -20 °C to 60 °C, Storage temperature: -30 °C to 70 °C, Humidity: 95% Non-Condensing
Standard : Input AC 100V~240V, 50Hz/60Hz output DC 12V/4A adapter, PPC_ Hook assembly
