Description

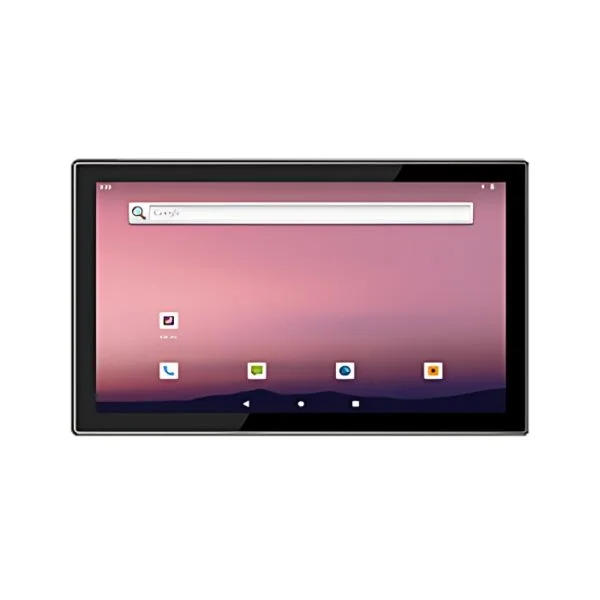

Equipped with 4-core ARM architecture A55 processor and Android 12 operating system. 21.5-inch flat capacitive touch panel with high impact resistance. Fanless design, excellent in heat dissipation and strong stability performance. Wide voltage and temperature working performance, perfect for 24/7 use in all weather conditions.Rich interfaces, including multiple USB/RS232/LAN/HDMI and other I/O ports,easily meet various scenario requirements. Equipped with a M.2 port for point-to-point serial connection, it can expand the 4G communication module, HDD and other peripherals. Standard PPC mounting hook component, easy to install and supports various installation methods such as embedded and wall-mounted
SPECIFICATIONS
Dimensions : 537.02 x 324.02 x 57.60 mm
Weight : 5.05 kg
Product Color : Black
Display : Size: 21.5 inch 16 :9, Resolution: 1920×1080, Brightness: 250 cd/㎡
Touch Panel : 10 PCAP
Ports : USB3.0*1, USB3.0*1 OTG, USB 2.0*2, DC IN 12V-24V Power connector *1, ∮3.5mm Standard Earphone Jack *1, RJ45 *1, DB9 PORT RS232 *2, HDMI *1
Processor : RK3568 Quad core 64 bit ARM V8.2 Cortex-A55, up to 2.0 GHz
Operating System : Android 12
Memory+Storage : RAM 4GB onboard, ROM 64GB
Power : AC100V ~ 240V、50Hz/60Hz output DC 12V/4A
WiFi : 802.11a/b/g/n/ac
Bluetooth : BT5.0
Temperature : Working temperature: -20 °C to 60 °C, Storage temperature: -30 °C to 70 °C
Standard : Adapter, PPC hook assembly, WiFi antenna
