Description

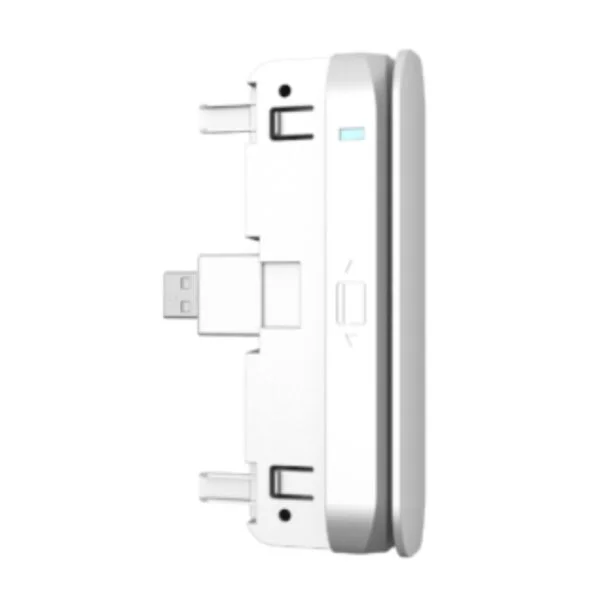

The MSR-150-A1 is an optional peripheral designed specifically for the DT-150P-A1 touch monitor. This MSR is a three track, bi-directional, encrypted solution for a variety of application use-cases.
Warranty: 3 year
SPECIFICATIONS
Swipe Speed: ISO standard card: 5-55, Jitter: 5-50, Low Amplitude: 5-50
Swipe Direction: Bi-directional
Number of Tracks: Track 1 & 3 210 bpi, Track 2 75/210 bpi
Power Supply: +5VDC, +/-5%
Power Consumption (Typical): 50 mA Max.
Interface: USB-A
Supported Formats: ISO 7811,CA old DMV, AAMVA,Tradeshow card, Read high or low coercivity magnetic stripes (300-4000oe)
Supported Emulation Modes: Keyboard Emulation Mode, Uniform Defined HID Device Mode (HID MSR)
Card Width: 3.375 x 2.125 in.
Supported Operating Systems: Windows 10 / Android
Mounting: Directly to DT-150P-A1
Dimensions (H x W x D): 255 x 220 x 388 mm
Weight (gross): 2.11 kg
Weight (net): 0.09 kg
Housing Color: White
What’s Included: Bi-Directional MSR
