Description

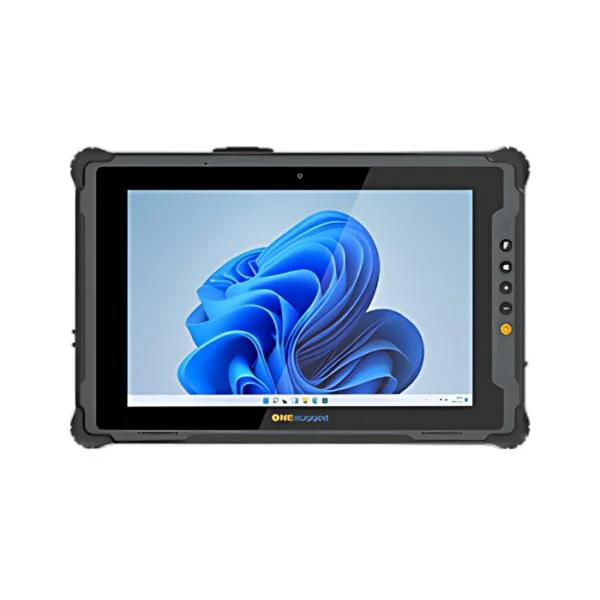

M10A is a 10.1-inch ultra-high-performance rugged mobile pc of ONERugged, equipped with the new 12th Generation Intel® Core™ i5-1235U/i7-1255U processor, which greatly improves the energy efficiency and performance per watt ratio. And there are also many other highlights such as high capacity memory and SSD, high-definition and high-brightness outdoor display, WiFi 6, 4G, Bluetooth 5.1, industrial NFC, dual batteries, full types of interfaces, expansion modules, which can bring more powerful productivity, easy to cope with a variety of high-performance and high-demand usage scenarios.
SPECIFICATIONS
Dimensions : 289.9×196.7×27.4mm
Weight : 1140g
Product Color : Black
Display : Size: 10.1 inch 16:10, Resolution: 1200*1920, Brightness: 700cd/㎡
Touch Panel : 10 points capacity TP, G+G, Hardness over 7H, Scratch resistant, support glove touch
Ports : USB 3.1 *1, USB Type-C *1 (Full function/HDMI/Charging), ∮3.5mm Standard Earphone jack *1, HDMI Mini *1, SIM card slot *1, TF card slot *1, DC 19V3.42A *1, 12Pin Pogo Pin *1, Optional: 1000M Ethernet port *1/RS232 *1/USB 2.0 *1/QR code scanner (one out of four)
Processor : Intel® Core™ i5-1235U Processor, Optional: Intel® Core™ i7-1255U Processor
Operating System : Windows 11
Memory+Storage : RAM: 16GB (DDR4L), ROM: 128GB (SSD)
Camera : Front 5.0MP, Rear 8.0MP
Battery : Build in Lithium-ion polymer battery, 7.4V/700mAh, Removable Li-polyment Battery, 7.4V/5000mAh
RTC Battery : Built-in RTC battery
Power : Adapter (input AC 100V~240V 50Hz/60Hz, output DC 19V/3.42A)
Fan : IPX5 fan *1
Data Collection (optional) : QR Code Scanner
Fingerprint : Support
WiFi : 802.11 (a/b/d/e/g/h/i/k/n/r/u/v/w/ac/ax), 2.4G+5.8G dual frequency
WAN : 4G
Bluetooth : Bluetooth 5.1
GNSS : GPS, Optional: GPS+GLONASS+ Beidou
NFC (optional) : Support
IP Ratings : IP65
Drop Resistance : 1.22m drop, MIL-STD-810H
Temperature : Working temperature: -20 °C to 60 °C, Storage temperature: -30 °C to 70 °C
ESD Protection : ±15kV air discharge, ±8kV contact discharge
Standard : Hand-strap, Carry Handle, Adapter
Optional : Docking Charger, Vehicle Mount, Removable Battery
