Description

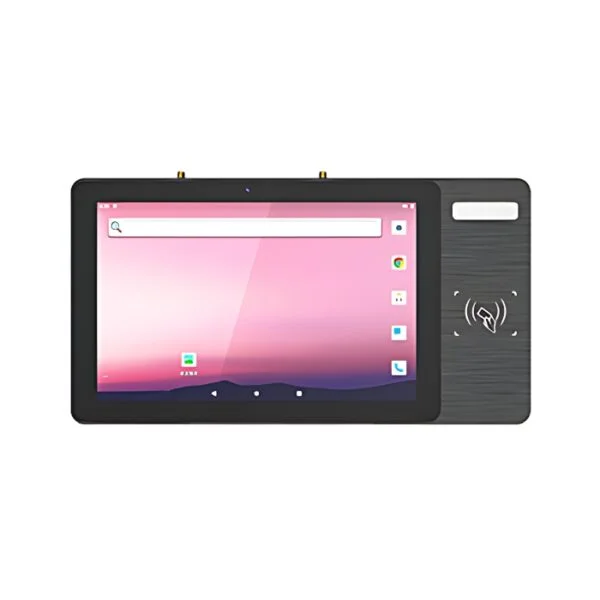

Engineered for workstation personnel, it features high integration, efficiency, stability, and configurability. With capabilities including display interaction, data collection, and NFC card reading, it’s ideal for factory MES, industrial automation, equipment data collection, and other production needs.Designed for a wide voltage fluctuation range of 12V-24V and a wide temperature range of -20°C to 60°C, the D10R ensures stable operation even in fluctuating voltage and high-temperature environments. And it supports 24/7 continuous operation, meeting the continuous usage requirements in industrial settings.
SPECIFICATIONS
Dimensions : 315mm*168mm*38mm
Weight : TBD
Product Color : Black (Optional: Silver)
Display : Type: LCD, Size: 10.1-inch 16:10, Resolution: 800×1280, Brightness: 700cd/㎡
Touch Panel : 10-point capacitive touch
I/O Ports : SIM *1 TF*1 (Internal), USB3.0*1+USB3.0*1 OTG+USB2.0*2, DC 12V *1+Phoenix Terminal, RJ45 *1 (10/100/1000M Adaptive)
Processor : RK3568 Quad-core 64 bit ARM V8.2 Cortex-A55, up to 2.0 GHz of main frequency
Operating System : Android 12
Memory+Storage : RAM: 4GB, ROM: 64GB
Adapter : Input: 100~240V AC 50/60Hz, Output: 12VDC 4.0A, UL2464, 20AWG
WiFi : WIFI 802.11 (a/b/g/n/ac) 2.4G+5G
WAN : 4G
Bluetooth : BT5.0
Certification : IP65
Rugged Features : Working temperature: -20 °C to 60 °C, Storage temperature: -30 °C to 70 °C, Humidity: 95% Non-Condensing
Standard : adapter, Antenna
