Description

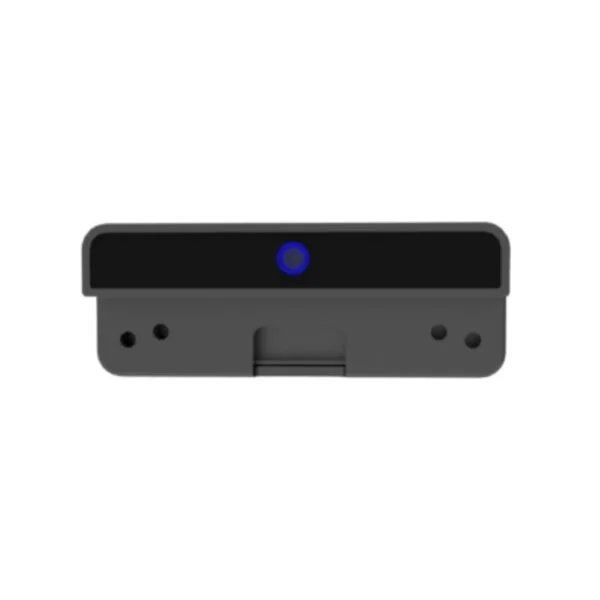

The CAM-000-A1 is an optional peripheral designed specifically for the DT-156P-A1, DT-215P-A1, IC-156P-AA2, and IC-215P-AA2 models. This 2 MP camera can support a wide range of use-cases in your application.
Warranty: 3 year
SPECIFICATIONS
Resolution: FHD 1920 x 1080 @30fps
Compliance: RoHS, REACH
MODUL SPECIFICATION
Dimension (D x W x H): 35 x 6 x 5.35 mm
Weight (net): 0.018 kg
LENS SPECIFICATION
Lens Composition: 4 Plastic + IR Filter (5E)
Mechanical (M): 83.5° ±5%
Diagonal (D): 77.5° ±5%
Horizontal (H): 69.7° ±5%
Vertical (V): 42.8° ±5%
IR Wavelength (T50%): 650 nm ±10 nm
Effective Focal Length (EFL): 1.87 mm ±5%
TV Distortion: ≦1.5%
F No.: 2.0 ±5%
Focus Mode: Fixed Focus (FF)
Focus Distance: 60 cm
Focus Range: 31 cm~ 1424 cm
IMAGE SENSOR SPECIFICATION
CMOS Image Sensor: 1/6” CMOS Sensor
Active Array Size: 1080P ( 1920(H) x 1080(V) )
Pixel Size: 1.4 um x 1.4 um
Image Format Output: YUY2, MJPG
ELECTRICAL SPECIFICATION
Input Voltage: USB 5.0V ±250mV
Temperature Range: 0℃ ~ 70℃
OTHER
Housing Color: Black
What’s Included: Camera, 2 Screws
