Description

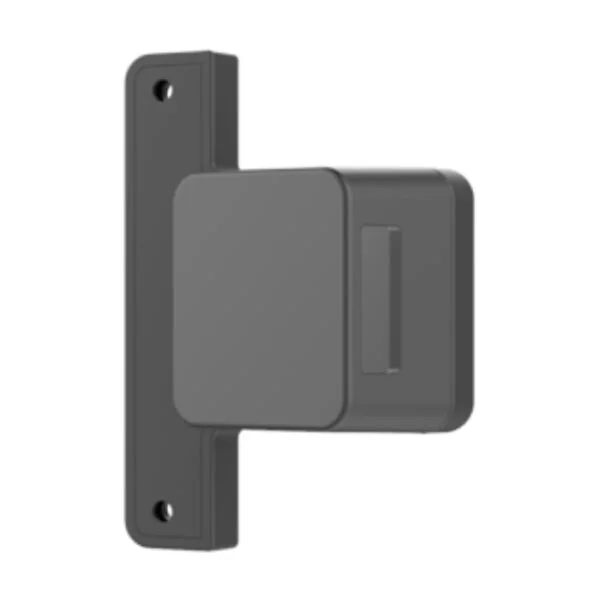

The 2D-PMH-A1 Barcode scanner is a newly designed, state of the art 2D Barcode Scanner. It’s sleek, compact, and ultra-modern design aesthetic makes it extremely reliable and convenient for customer work environments. The 2D-PMH-A1 operates in portrait mode. It is extremely motion tolerant with the ability to reach up to 120 fps with the capability to reach up to 6 m/s with its image capture rate. The advanced feature set of this next generation scanner creates a convenient and hassle-free solution for customer scanning applications.
Warranty: 3 year
SPECIFICATIONS
Housing Color: Black
Compatibility: All-in-One Touch Computer Series with Android & Windows OS
Barcode Engine: Honeywell N4680
Standard Configuration: Presentation Mode
Supported Terminal Modes: USB HID Keyboard Mode, USB Serial Model, HID POS Mode
Resolution: 640×480
Illumination & Aiming: 3000K LED & 630nm LED
Ideal Scan Distance: 36 mm to 747 mm (Performance may be impacted by barcode quality and environmental conditions)
Supported Symbols: 1D : Codabar, Code 11, Code 128, Code 2 of 5, Code 39, Code 93 and 93i, EAN/JAN-13, EAN/JAN 8, IATA Code 2 of 5, Interleaved 2 of 5, Matrix 2 of 5, MSI, GS1 Databar, UPC-A, UPC E, UPC-A/EAN-13 with Extended Coupon Code, Coupon GS1 Code 32(PARAF), EAN-UCC Emulation, GS1 Data Bar
2D : Codablock A, Codablock F, PDF417, MicroPDF417, Aztec Code, Data Matrix, Maxi Code, QR Code, Chinese Sensible(Han Xin) Code, DotCode, Grid Matrix
Postal Codes : Australian Post, British Post, Canadian Post, China Post, Japanese Post, Korea Post, Netherlands Post, Planet Code, Postnet
Viewing Angle: 40° horizontal × 30° vertical
Audio: Yes
Gross Weight: 0.104 Kg
Net Weight: 0.049 Kg
Dimensions: 79.6 x 56.6 x 35.4 mm
Operating Temperature: -30°C to 60°C
Storage Temperature: -40°C to 70°C
Humidity: 0% to 95% relative humidity, non-condensing, at 60°C
What’s Included: 2 screws
